In the fast-paced world of electronics manufacturing, first-pass yield is more than just a metric — it’s a financial bellwether. A poor yield can quietly siphon thousands of dollars from your bottom line through rework, retest, and downtime.

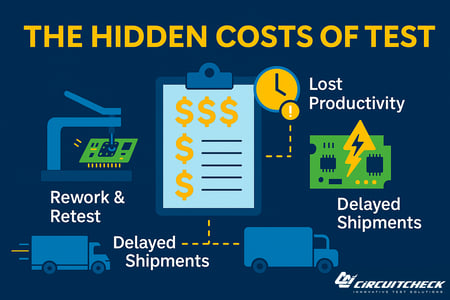

When Test Fails, Costs Soar
A supplier builds 1,000 boards with a first-pass yield of 75%. With each board needing multiple rework and retest loops, the labor costs add up quickly. What begins as a quoted 2-minute test per board can swell to more than 9 minutes, with added rework time pushing labor costs past $17 per board — totaling over $4,400 for just 250 boards.

The real kicker? These are only the visible costs. Field returns, delayed shipments, unrepairable boards, and even stress-induced product damage often go uncalculated, yet they significantly impact profitability and customer satisfaction.

The Economics of Good Test Design
To mitigate these losses, manufacturers must think beyond the basic cost of fixtures or equipment. Instead, they should focus on total cost of test — a metric shaped by yield, labor, fixture design, and long-term maintainability.

Key recommendations include:

• Fixture Quality and Design: Poor DUT (device under test) registration or probe contact can lead to false failures, retesting, and ultimately, missed defects. There may be a need for socketless probe technology and carefully managed strain during testing to avoid hidden damage.
• Mechanical Strain Management: Improper probe pressure or fixture misalignment can cause PCB stress — especially near delicate BGA packages. Finite Element Analysis (FEA) used by Circuit Check shows how doubling pushdown fingers reduced strain levels from 710 µs to under 200 µs, drastically improving long-term reliability.
• Modular Interconnects and Ergonomics: Drawer-style fixtures, rotating platforms, and mass interconnects all simplify maintenance and reduce operator strain. This leads to fewer errors, quicker fixture swaps, and better overall uptime.

Design for Change and Scale
As product complexity and variation increase, so too must fixture adaptability. Circuit Check supports modular, drop-in adapters that accommodate high-mix environments without rebuilding the test platform from scratch. Whether you're testing medical devices, automotive ECUs, or wireless IoT modules, fixtures that evolve with your product lifecycle offer clear cost advantages.

A Strategic Investment
ATE (automated test equipment) and fixtures must be chosen with lifecycle economics in mind. It's not just about today’s test — it’s about preparing for tomorrow’s revisions, yield targets, and throughput demands.

Investing in smart, scalable, and ergonomic test solutions isn’t a luxury — it’s a financial imperative. Poor fixture design can quietly erode profits, while great design amplifies both quality and efficiency.
