Interface Test Adapters (ITAs) play a crucial role in connecting test equipment interfaces to the Device Under Test (DUT). It is important to understand the mechanical and electrical design considerations for developing ITAs, aiming to build adaptable test stations and improve existing ones. Fabrication, verification, and self-test options for ITAs should be evaluated.

What is an ITA?

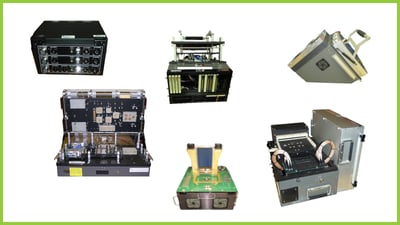

An Interface Test Adapter (ITA) is a device that facilitates connectivity between test equipment interfaces and the DUT. It ensures accurate and efficient testing processes, which are vital for maintaining the integrity and functionality of electronic devices.

Requirement Considerations

When designing ITAs, several key requirements must be taken into account:

• Mass Interconnect: Ensures reliable and repeatable connections between the test equipment and DUT.
• Self-Test ITAs: These adapters are designed to perform self-tests to verify their own functionality.
• PCBA Functional Test ITAs: Used for testing printed circuit board assemblies (PCBA) to ensure they function correctly.
• LRU ITAs: Line Replaceable Unit (LRU) ITAs are used for testing individual units that can be replaced in the field.
• RF ITAs: Specialized for testing radio frequency components, requiring precise and stable connections.

ITA/System Requirement Considerations

When considering the system requirements for ITAs, several factors come into play:

• Type of Testing: The nature of the tests being performed (functional, stress, life tests) dictates the design of the ITA.
• Volume: The number of units to be tested can impact the design, especially in high-volume production environments.
• Temperature: ITAs must be designed to operate within the temperature ranges expected during testing.
• Safety Requirements Specification (SRS): Ensuring the ITA meets all safety standards and regulations.
• Ergonomics: Designing ITAs for ease of use and handling by operators.
• Identification: Proper labeling and identification of ITAs to avoid confusion and ensure correct usage.

ITA Requirement Considerations

Specific considerations for ITA design include:

• Design Verification and Validation (DVT): Ensuring the ITA design meets all specified requirements and performs as expected.
• Highly Accelerated Life Test (HALT): Testing the ITA under extreme conditions to identify potential failure points.
• Highly Accelerated Stress Screen (HASS): Screening ITAs to ensure they can withstand high-stress conditions.
• Functional Test: Testing various components such as PCBA, subassemblies, LRUs, and self-tests.
• Calibration: Ensuring the ITA is properly calibrated for accurate testing results.
• Thru-connector: Designing connectors that allow signals to pass through without degradation.
• RF Considerations: Addressing the specific needs of RF testing, including signal integrity and shielding.

Additional Considerations

• Level of Automation: Determining the degree of automation required for the testing process.
• Number of Duplicates: Designing ITAs to handle multiple DUTs simultaneously if needed.
• DUT Loading Time: Minimizing the time required to load and unload DUTs to improve efficiency.
• Fixture Type: Selecting the appropriate fixture type based on the DUT and testing requirements.
• Preventive Maintenance Schedule: Establishing a maintenance schedule to ensure ITAs remain in optimal condition.

Cooling Requirements

The cooling requirements for DUT/ITA components determine the complexity of the mechanical design of the ITA. Options include:

• Heat Sink: Passive cooling solution.
• Cooling Tower: Active cooling solution.
• Fan: Forced air cooling.
• Card Cage with Liquid Coolant: Advanced cooling for high-power applications.
• Temperature Controlled Environment: Ensuring stable testing conditions.

Safety Considerations

Safety is paramount in ITA design, and considerations include:

• Voltage Interlocks: Preventing accidental exposure to high voltages.
• Fixture Locks: Ensuring secure connections.
• Safety Shielding: Protecting operators from hazards.
• RF Shielding: Preventing interference.
• Pneumatic Dump Valves: Ensuring safe operation of pneumatic systems.
• ESD Protection: Preventing electrostatic discharge damage.

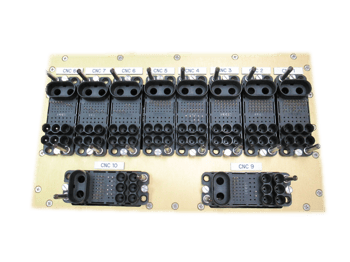

Mass Interconnect Considerations

• New Test Set Designs: Whether to use big box or modular equipment.
• Resources Required: Types of resources and ITAs needed.
• Signal Integrity: Ensuring high-quality signal transmission.
• Anticipated Number of Systems/ITAs Deployed: Planning for scalability.
• Repeatability: Ensuring consistent performance.
• Cost – Performance – Lead Time: Balancing cost, performance, and delivery time.

Self-Test ITA Considerations

Benefits:

• Software Development: Developing drivers, DLLs, and VIs before integrating DUT ITAs.
• Acceptance of New Test System Racks: Without DUT ITA.
• Isolate Equipment Problems: In the test system.
• Isolate Connectivity Issues: Ensuring reliable connections.
• Test System Rack Verification: Prior to testing.

Disadvantages:

• Additional Cost: Increased expenses.
• Development Lead Time: Longer hardware and software development time.
• Implementation Effort: Higher effort for verification and validation.

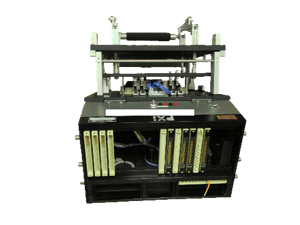

PCBA Functional Test ITAs

• Motherboard PCBA: Using a motherboard for signal integrity and impedance matching.
• Active Components: Improving performance on high-speed data capture.
• Pogo Pin Fixtures: Using pogo pins for high probe count/density fixtures.
• Modular Hardware: Example of double-ended probes.

Additional PCBA Motherboard Considerations

• Using Active Components: Improves performance on high-speed data capture and allows for firmware updates to the fixture for communication and data analysis or collection. It also provides buffering and isolation of DUT signals. However, using active components can make the ITA difficult to repair or modify, increase the complexity of development, and require more integration effort.
• Alternatives to Active Components: Use plug-in development kits, place active components on a daughter card, use off-the-shelf communication adapters, or create interposer adapters.
• Recommended Motherboard Features: Include ECO capability, extra connectors, jumper or 0-ohm resistor pads for connectivity, thru-hole vias, LED indicators, test points, a general-purpose area for additional hardware, clock buffers, and termination, and passive components.

LRU ITA Considerations

• Thru-connector: Integrated with the fixture.
• Cabled: Predominantly cabled, usually not off the shelf.
• Caged on the Fixture: Ideally caged for stability.
• Self-test Thru Mating Connectors: Built-in self-test capabilities.
• Common Connectors: Using standard connectors for ITA.

RF ITA Considerations

• Radiated: Calibration through correlation with multiple DUTs.
• Moving Components: Ensuring components return to the same location from test to test.
• Antenna Placement: Critical placement due to proximity to DUT and fixture components.

Designing Interface Test Adapters involves a comprehensive understanding of the testing requirements and system considerations. By addressing these factors, engineers can create ITAs that enhance the accuracy, efficiency, and reliability of the testing process, ultimately contributing to the quality and performance of electronic devices.
