Modern electronic devices demand more from test systems than ever before. Higher channel counts, tighter timing requirements, broader power ranges, and increasing data complexity are pushing traditional bench-top approaches beyond their limits. At Circuit Check, we help manufacturers bridge that gap by transforming modular test technology into fully integrated, production-ready functional test systems.

Why Modular PXI Matters

At the core of many advanced test platforms is the PXI architecture. PXI combines modular instrumentation with a high-performance backplane that enables precise timing, synchronization, and high-speed data throughput. Instead of managing multiple standalone instruments with independent clocks, PXI brings everything into a single, tightly integrated system.

This modular approach delivers several advantages:

• Scalability to match changing test requirements
• High channel density without excessive rack space
• Deterministic timing and synchronization across instruments
• Flexibility to support multiple product variants on a shared platform

With thousands of available hardware modules spanning power, digital, analog, and RF, PXI allows engineers to configure test systems that are purpose-built for their device under test.

Covering the Full Spectrum of Test Requirements

A complete functional test system must address a wide range of measurement and control needs. PXI-based systems excel at consolidating these capabilities into a single platform:

• Power delivery and measurement — from ultra-low current measurements for sensors to high-power applications like battery and power electronics testing
• Digital communication and capture — including programming, control, and verification of digital interfaces used across semiconductor, aerospace, automotive, and industrial devices
• Analog signal generation and acquisition — for waveform generation, data conversion, and time-correlated analysis
• RF test and record-and-replay — supporting wide bandwidth applications such as radar, satellite communications, and GPS validation

By integrating these functions into one synchronized system, engineers can perform complex, multi-domain tests that would be difficult or impractical with discrete instruments.

Reducing Complexity with System-Level Integration

While modular hardware provides the building blocks, turning those blocks into a reliable production test system requires careful system design. Power distribution, cooling, cabling, switching, and signal routing all play a critical role in performance and reliability.

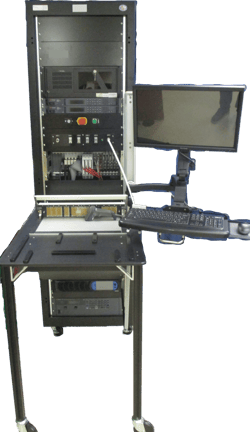

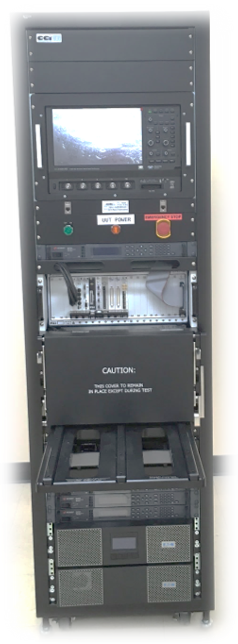

This is where Circuit Check adds significant value. We design and integrate complete test systems that combine PXI instrumentation with:

• Robust rack-level integration
• Switching and multiplexing for multi-DUT testing
• Reliable ITA and fixture interfaces
• Clean, documented wiring and signal routing
• Production-ready safety and serviceability

The result is a system that not only meets technical requirements, but is also optimized for uptime, repeatability, and ease of use on the manufacturing floor.

Maximizing Rack Space and Throughput

High-density modular instrumentation dramatically reduces the physical footprint of a test system. Multi-channel PXI instruments can replace entire racks of bench-top equipment, freeing valuable floor space while increasing test capacity.

For high-volume manufacturing, this translates directly into:

• Higher throughput per tester
• Lower overall system cost
• Simplified maintenance and calibration
• Easier replication across multiple test stations

By designing systems with shared resources and intelligent signal routing, Circuit Check helps customers test more devices with fewer instruments — without sacrificing performance.

Designed for Production, Not Just the Lab

A test system that works on an engineer’s bench doesn’t always survive the realities of production. Functional test requires repeatable connections, robust fixtures, and consistent performance shift after shift.

Circuit Check’s roots are in fixtures and interfaces, and that expertise carries through every system we build. No matter how advanced the instrumentation, reliable connection to the device under test is essential. Our integrated approach ensures the test hardware, fixture, and interface are designed together — not as separate afterthoughts.

Turning Modular Technology into Manufacturing Advantage

PXI and modular instrumentation offer tremendous flexibility, but the real advantage comes from how that technology is applied. By combining NI’s modular platforms with Circuit Check’s system integration and manufacturing test expertise, customers gain test systems that are:

• Scalable across product lifecycles
• Adaptable to future requirements
• Built for production reliability
• Designed to grow with their business

If you’re looking to move beyond bench-top testing and toward a smarter, more scalable functional test strategy, Circuit Check can help you turn modular technology into a competitive advantage.
